ĐÈN BẬC THANG RẠP CHIẾU PHIM - NHÀ HÁT - SÂN KHẤU

ĐÈN BẬC THANG RẠP CHIẾU PHIM - NHÀ HÁT - SÂN KHẤU

Model : TPT-F001-T

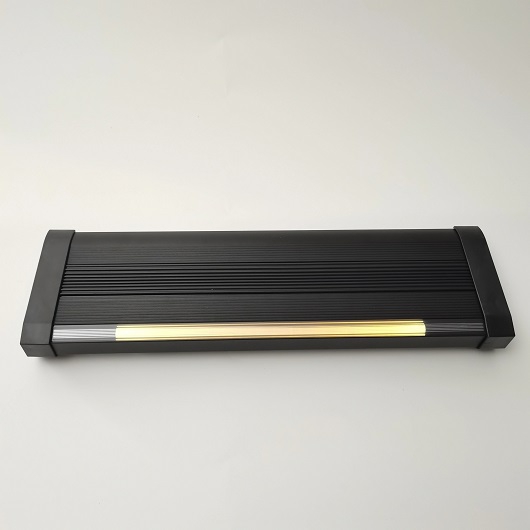

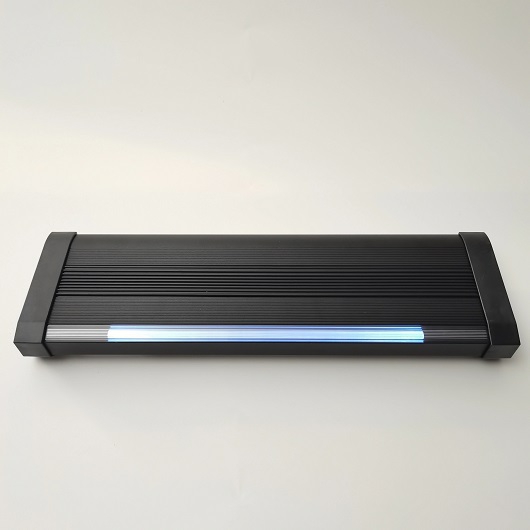

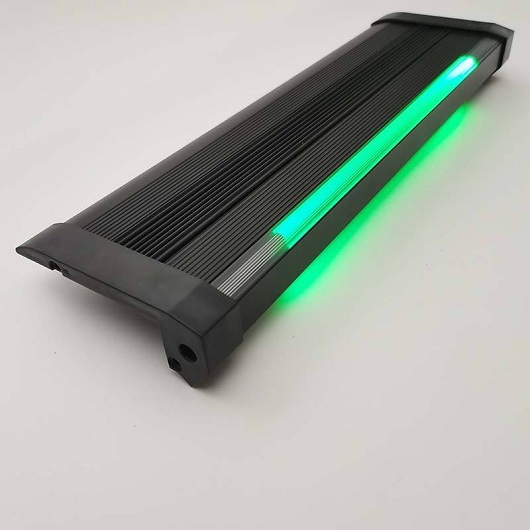

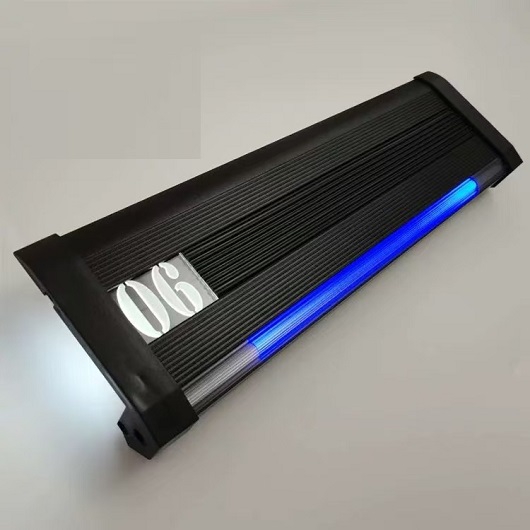

Product image
Right plug size
Section size of aluminum lamp body	W80MM*H33MM*T1.7MM
Step light and step level height	6MM
Tread width	100MM
Power without row number	Single light 0.2W per level（To ensure that the length of the luminous effect is within 3 meters）
Single sideband numbering power	Single light 0.4W per level
Bilateral band number power	Single light 0.6W per level
Required voltage	5 V DC voltage
Additional procurement required	110-220 V AC voltage to 5 V DC voltage (switching power supply)
Step light length	Customized according to the length provided by the customer (to ensure that the luminous effect length is within 3 meters)
Luminescence principle	The two ends of the light source emit light, and the optical fiber guides light
Light source maintenance	All you need to do is replace the light beads on both ends of the light source and fix them on the optical fiber through thermal shrinkage
Step light source color	Blue, green, red, orange, pink, warm white, cold white, ice blue (selected before customization)
Number light color	white
Row Number	Customize according to the customer's requirements
Plug (head) material	PVC
model	TPT-F001-T
External color of non light source	black
Anti slip strip material	Soft PVC anti slip adhesive strip
Installation method	Drilling, fixing, and wiring are sufficient
Apply step material	Floor glue, ceramic tiles, marble, carpet, steel plate, wood flooring
Luminous mode	Glow up
Other customized lighting methods	Glow down, dual glow up and down
Qualification certification	Protected by Chinese patents, certified by EU CE, and certified by Chinese MA testing reports.

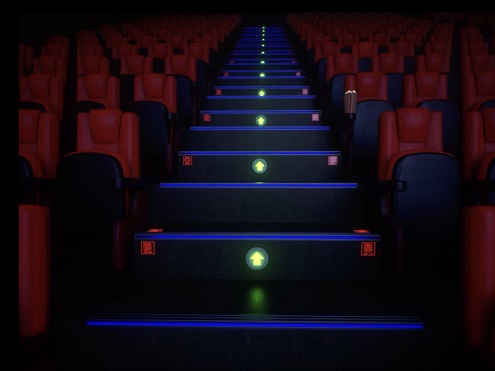

Ứng dụng của đèn bậc thang rạp chiếu phim , đèn bậc thang nhà hát dùng để chiếu sáng dẫn bước trong điều kiện ánh sáng yếu của rạp phim, nhà hát . Giúp khách đi lại dễ dàng, không bị vấp ngã và thấy được hàng ghế .
